Strapping Breakage Causes: Diagnosing Why Bands Fail
Strapping breakage causes usually trace back to one of five issues: a sharp edge, a weak seal, wrong polymer, wrong tension or a damaged tool. Bands rarely fail because the material is simply too weak. Reading the broken end tells you which cause applies. This guide helps buyers diagnose failures methodically, fix the process and specify a band that survives.
1. What are the most common strapping breakage causes?
The most common strapping breakage causes are edge cutting, seal failure, over-tensioning, wrong polymer for the load and worn tools. Each leaves a different signature on the band. Edge cuts show a clean slit, seal failures show a straight separation, and brittle breaks show a shattered end. Diagnosis starts with the break.
Photograph every broken band before it is removed.
| Dimension | Impact | Buyer action / evidence |
|---|---|---|
| Break appearance | Identifies the cause | Keep a photo log by cause |
| Location on pallet | Points to handling | Mark the break position |
| Frequency | Separates one-offs from patterns | Count breaks per week |
2. How do strapping breakage causes differ between PP and PET?
Strapping breakage causes differ between PP and PET because the polymers fail differently. PP tends to stretch, whiten and then split, often after losing tension and letting the load shift. PET holds tension but can crack at a sharp corner or a poor seal. Cold makes both more brittle, with PP affected first.
Match the diagnosis to the polymer before changing the specification.
| Dimension | Impact | Buyer action / evidence |
|---|---|---|
| Failure pattern | Polymer-specific diagnosis | Compare broken ends by material |
| Temperature | Brittleness risk | Note conditions at failure |
| Tension history | Stretch or crack | Check tension records |
3. Where do strapping breakage causes appear most often on a pallet?
Straps break most often at the seal, at the top corner and along the bottom run. The seal is the least ductile part of the loop, the top corner takes the impact during stacking, and the bottom run is exposed to pallet trucks. A break on a straight section away from any contact point suggests a material or tension problem.
Mark the break position on a pallet diagram to find patterns.
| Dimension | Impact | Buyer action / evidence |
|---|---|---|
| Position pattern | Narrows the cause | Plot breaks on a pallet sketch |
| Handling stage | Process fix | Note when damage appears |
| Pallet condition | Sharp or broken deck | Inspect pallets at the station |
4. Which strapping breakage causes point to a tool problem?

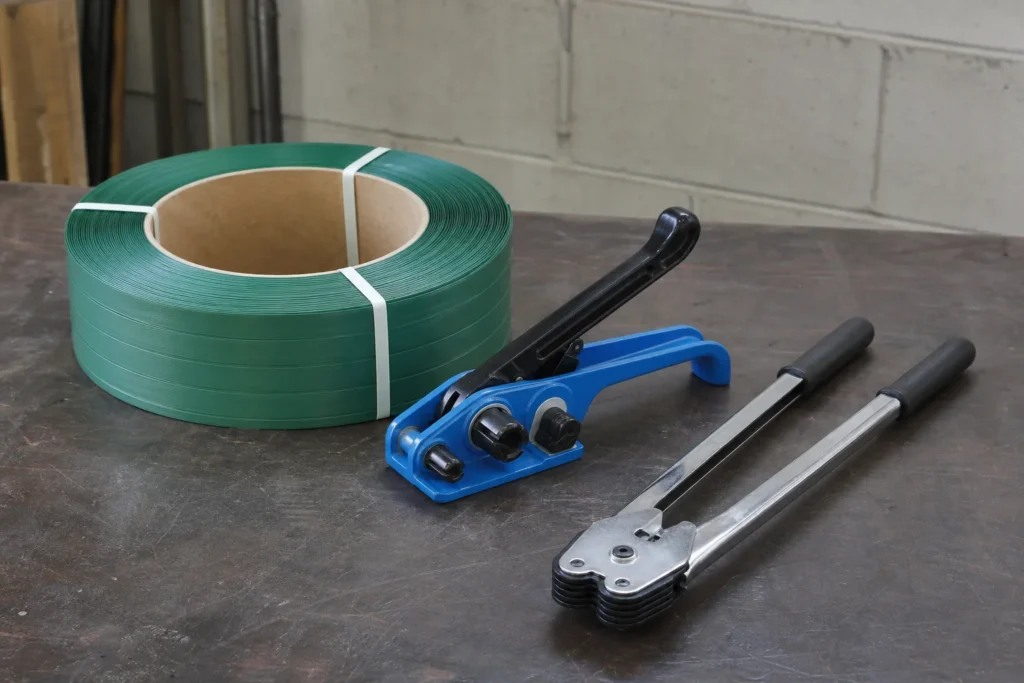

Some strapping breakage causes point straight to the tool. A seal that separates cleanly, a band with crush marks near the joint or a frayed cut end all suggest worn or misadjusted equipment. Tools that cannot reach working tension also push operators to over-tension by hand.
Service the tool before blaming the band.
| Dimension | Impact | Buyer action / evidence |
|---|---|---|
| Seal quality | Joint strength | Pull-test ten seals per shift |
| Cutter condition | Tail and fray | Inspect blades weekly |
| Gripper wear | Tension loss | Check tension with a gauge |
5. How should a buyer investigate strapping breakage causes?
Investigating strapping breakage causes needs a simple, consistent record. Note the pallet, product, polymer, band width, tool, operator, temperature and break location for each failure. After twenty records, patterns appear that no single incident reveals. Then change one variable at a time.
Record twenty failures before changing any specification.
| Dimension | Impact | Buyer action / evidence |
|---|---|---|
| Sample size | Patterns versus noise | Collect twenty records |
| Variables | Isolates the cause | Change one factor at a time |
| Photos | Evidence for suppliers | Attach images to each record |
6. What should you record to trace strapping breakage causes?
A breakage log should capture what, where, when and under which conditions, plus a photo of the broken end. Add the action taken, so the log becomes a history of fixes rather than a list of complaints. Share it with the band supplier when asking for technical support.
Keep the log on the line, not in an office drawer.
| Dimension | Impact | Buyer action / evidence |
|---|---|---|
| Log completeness | Diagnosis speed | Audit entries weekly |
| Photo quality | Shows failure mode | Photograph broken ends closely |
| Follow-up | Prevents repeat failures | Review open actions monthly |
7. How do temperature and time rank among strapping breakage causes?
Temperature and time cause breakage by changing how the polymer behaves. Heat softens band and accelerates relaxation, so straps loosen and rub against edges. Cold stiffens band and reduces impact resistance, so a knock cracks it. Long storage adds creep, which is why failures often appear days after packing.
Check the band at the temperature and age at which it actually fails.
| Dimension | Impact | Buyer action / evidence |
|---|---|---|
| Storage climate | Relaxation rate | Log temperature in stores |
| Transit climate | Container heat | Use a data logger |
| Age at failure | Creep evidence | Record days since packing |
8. Should you fix the band or the process behind strapping breakage causes?
Fix the process first when the failure is at an edge, a seal or a corner, because a stronger band only delays the same failure. Change the band when the diagnosis shows the polymer cannot carry the load or the temperature. Many failures need both: protection for the edge and a better polymer for the load.
Diagnose first, then fix the cheapest cause before upgrading material.
| Dimension | Impact | Buyer action / evidence |
|---|---|---|
| Cost of fix | Protection versus upgrade | Compare cost per pallet |
| Recurrence | Proves the fix worked | Track breaks after the change |
| Supplier input | Technical support | Share the breakage log |
Q1. Why do my straps break at the seal?
A seal that separates cleanly usually means wrong heat or friction settings, worn jaws or a seal method unsuited to the polymer. Check tool settings and pull-test seals before changing band.
Q2. Can a stronger band stop breakage at corners?
Only temporarily. A corner cut is a stress concentration, so a stronger band still fails there. Add edge protectors or change the strap path.
Q3. Do straps break more in winter?
Yes, especially PP, which becomes brittle in cold conditions. Cold-store and winter dock failures often show a shattered end rather than a stretched one.
Q4. How many failures should I record before acting?
Twenty records are usually enough to reveal a pattern. Note product, band, tool, temperature and location, then change one variable at a time.
Q5. What should I request from a supplier?
Share your breakage log and photos, then request samples matched to the load and climate. RX Packaging runs tension, corrosion and elasticity checks in a 12-point process and can review failure evidence with you.
